Unit 1, Lesson 13

Prisms Practice

$Course Icon$

Integrated Math 3

13.1

Warm-up

Calculate the height of each solid. Round your answers to the nearest tenth if needed.

<p>Right cone. Base radius = 6 point 5 inches. Cone height = 17 point 3 inches.</p> — A

<p>Oblique cylinder. The side of the cylinder has length 12 millimeters and is at a 50 degree angle to the base.</p> — B

13.2

Activity

Here are several solids.

<p>Right Triangular prism. Triangular base, Base =11 centimeters, height = 5 centimeters. prism height = 8 centimeters </p> — A

<p>Oblique cylinder. Radius =5. Slant length = 10. Angle formed with surface =40 degrees </p> — B

<p>Rectangular prism. Base side lengths =7 and 5 feet. Prism height = 10 feet </p> — C

<p>Right Triangular prism. Triangular base, base= 7 meters, height = 8 meters. Prism height = 11 meters </p> — D

<p>Cylinder. Radius = 20 inches. Height = 15 inches </p> — E

<p>Right Triangular prism. Triangular bases, base = 4 centimeters. Adjacent angle = 30 degrees. Prism height = 6 point 5 centimeters.</p> — F

<p>Oblique cylinder. Base, capital C = 4 meters. Perpendicular height = 2 meters.</p> — G

Without doing any calculating, identify 2 solids that you think would have the least difficult volume calculations and 2 solids that would have the most difficult volume calculations. Be prepared to explain your reasoning.
Choose 3 of the solids. At least 1 should be from your “least difficult” list, and 1 should be from your “most difficult” list. Calculate the volumes of the solids you chose. Round your answers to the nearest tenth if needed.

13.3

Activity

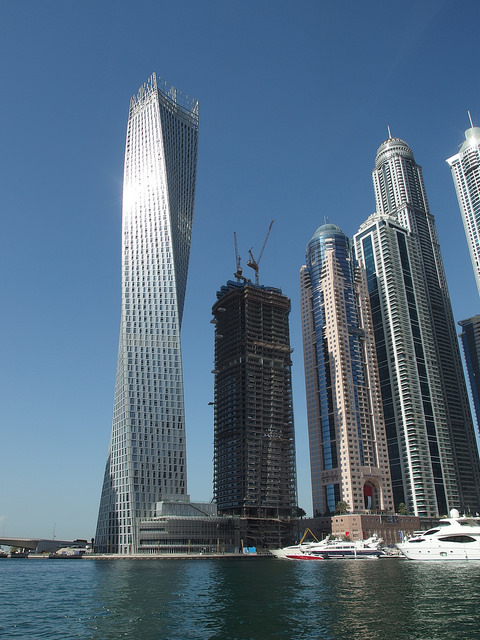

The building on the left side of the picture is called the Cayan Tower. It’s in the city of Dubai. The tower is about 306 meters tall. It’s made up of identical floors that are each rotated slightly compared to the one underneath it.

<p>Chevron composed of 2 equalivalent parallelograms, top and bottom sides of each = 35 meters. Circle in middle between parallelograms, diameter= 17 meters</p> — floor plan

Each floor is the same chevron shape that is approximately 2 parallelograms put together, with the dimensions shown in the image. The circle in the floor plan shows the cross-section of the core, which is used to circulate air and carry pipes and wiring throughout the building.

The area of the Cayan Tower’s base is or 1,995 square meters. Why is it possible to find the area of the chevron shape by just multiplying its width and height?
Describe how the total volume of the building (including the core) can be calculated.
What shape is the core of the building, whose cross-section is shown in the floor plan as a circle?
Describe how the volume of the building’s core can be calculated, including describing the measurements that would be used.
What percentage of the building’s volume is taken up by its core?

Student Lesson Summary

The formula , where stands for volume, is the area of the base, and is the height, applies to right and oblique cylinders and all prisms. Sometimes, though, additional calculations are needed to find missing measurements before the formula can be applied.

To calculate the volume of this cylinder, first find the area of the base, which is a circle of radius 5 cm. Its area is square centimeters. The cylinder’s height isn’t given. To find the value of the height, notice that a right triangle is formed by the 15-centimeter diagonal line, the 10-centimeter diameter of the circle, and the height of the cylinder. The diagonal line is the triangle’s hypotenuse. By the Pythagorean Theorem, . That means . Subtracting 100 from each side gives , so is centimeters.

<p>Cylinder. Radius of base = 5 centimeters. Slant length of cylinder = 15 centimeters </p>

The volume of the cylinder is the area of the base multiplied by the height. This is cubic centimeters, or approximately 878.1 cubic centimeters.
