Unit 8, Lesson 6
Interpreting Histograms
Grade 6
6.1
Warm-up
Here is a dot plot showing the weights, in pounds, of 40 dogs at a dog show.
A dot plot, weight in pounds, labeled 60 to 180 by tens. Starting at 68 with intervals of 2, the number of dots above each increment is 1, 1, 2, 0, 1, 1, 0, 2, 1, 0, 0, 4, 1, 3, 0, 0, 4, 0, 0, 1, 0, 0, 1, 5, 0, 3, 0, 1, 2, 0, 0, 0, 0, 0, 1, 1, 0, 0, 0, 1, 0, 0, 2, 0, 0, 0, 0, 1.
- Write two statistical questions that can be answered using the dot plot.
- What would you consider a typical weight for a dog at this dog show? Explain your reasoning.
6.2
Activity
Here is a histogram that shows some dog weights in pounds.
Each bar includes the left-end value but not the right-end value. For example, the first bar includes dogs that weigh 60 pounds and 68 pounds but not 80 pounds. An 80-pound dog would be included in the second bar with a frequency of 11.
-
Use the histogram to answer these questions.
-
How many dogs weigh between 100 and a little less than 120 pounds?
-
How many dogs weigh exactly 70 pounds?
-
How many dogs weigh at least 120 pounds?
-
How much does the heaviest dog at the show weigh?
- What would you consider a typical weight for a dog at this dog show? Explain your reasoning.
-
-
Discuss with a partner:
-
If you used the dot plot to answer the same five questions you just answered, how would your answers be different?
-
How are the histogram and the dot plot alike? How are they different?
-
6.3
Activity
Every ten years, the United States conducts a census, which is an effort to count the entire population. The dot plot shows the population data from the 2010 census for each of the fifty states and the District of Columbia (DC).
A dot plot, population of states in millions, labeled 0 to 40 by twos. A cluster of approximately 30 dots have a population between point six and six point 4. There is one dot above each of the tick marks for 8, 8 point 7, 9, 9 point five, 11, 12, 12 point 1, 18 point 8, 19 point 2, 25, 37 point 2.
-
Here are some statistical questions about the population of the fifty states and DC. How difficult would it be to answer the questions using the dot plot?
In the middle column, rate each question on its difficulty to answer based on this dot plot as either easy, hard, or impossible. Be prepared to explain your reasoning.statistical question using the dot plot using the histogram a. How many states have populations greater than 15 million? b. Which states have populations greater than 15 million? c. How many states have populations less than 5 million? d. What is a typical state population? e. Are there more states with fewer than 5 million people or more states with between 5 and 10 million people? f. How would you describe the distribution of state populations? -

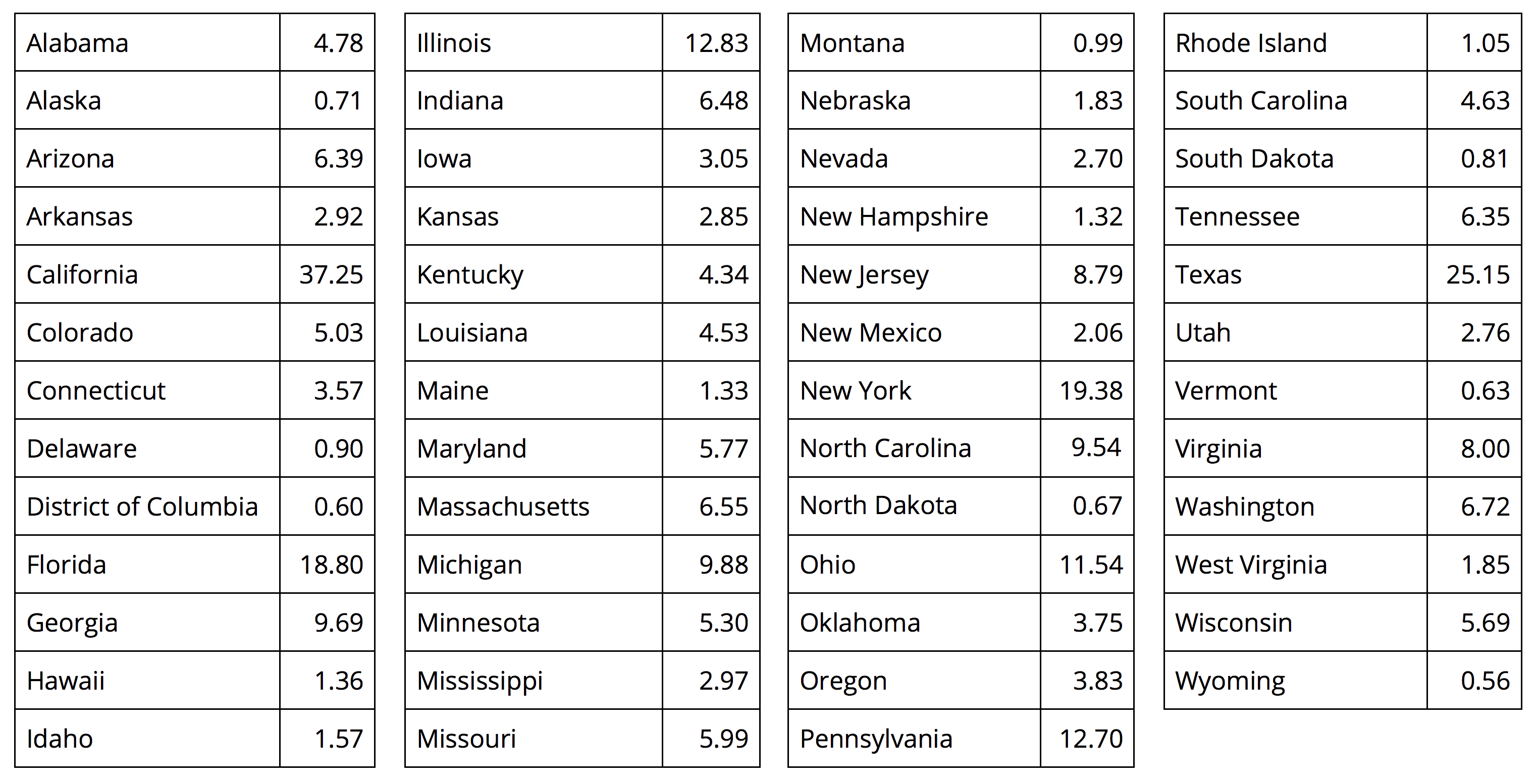

Here are the population data for all states and the District of Columbia from the 2010 census. Use the information to complete the table.
A table of population of states in millions. Alabama, 4 point 7 8, Alaska, zero point 7 1, Arizona, 6 point 3 9, Arkansas, 2 point 9 2, California, 37 point 2 5, Colorado, 5 point 0 3, Connecticut, 3 point 5 7, Delaware, 0 point 9 0, District of Columbia, 0 point 6 0, Florida, 18 point 8 0, Georgia, 9 point 6 9, Hawaii, 1 point 3 6, Idaho, 1 point 5 7, Illinois, 12 point 8 3, Indiana, 6 point 4 8, Iowa, 3 point 0 5, Kansas, 2 point 8 5, Kentucky, 4 point 3 4, Louisiana, 4 point 5 3, Maine, 1 point 3 3, Maryland, 5 point 7 7, Massachusetts, 6 point 5 5, MIchican, 9 point 8 8, Minnesota, 5 point 3 0, Mississippi, 2 point 9 7, Missouri, 5 point 9 9, Montana, 0 point 9 9, Nebraska, 1 point 8 3, Nevada, 2 point 7 0, New Hampshire, 1 point 3 2, New Jersey, 8 point 7 9, New Mexico, 2 point 0 6, New York, 19 point 3 8, North Carolina, 9 point 5 4. North Dakota, 0 point 6 7, Ohio, 11 point 5 4, Oklahoma, 3 point 7 5, Oregon, 3 point 8 3, Pennsylvania, 12 point 7 0, Rhode Island, 1 point 0 5, South Carolina, 4 point 6 3, South Dakota, 0 point 8 1, Tennessee, 6 point 3 5, Texas, 25 point 1 5, Utah, 2 point 7 6, Vermont, 0 point 6 3, Virginia, 8 point 0 0, Washington, 6 point 7 2, West Virginia, 1 point 8 5, Wisconson 5 point 6 9, Wyoming, 0 point 5 6.population (millions) frequency 0–5 5–10 10–15 15–20 20–25 25–30 30–35 35–40 -
Now, use the grid and the information in your table to create a histogram.
-
Return to the statistical questions at the beginning of the activity. Which ones are now easier to answer?
Complete the table, rating the difficulty of answering each question—this time using your histogram. Be prepared to explain your reasoning.
Student Lesson Summary
In addition to using dot plots, we can also represent distributions of numerical data using histograms.
Here is a dot plot that shows the weights, in kilograms, of 30 dogs, followed by a histogram that shows the same distribution.
A dot plot, the numbers 10 through 35, in increments of 5, are indicated. The 30 data values are as follows: 10 kilograms, 1 dot. 11 kilograms, 1 dot. 12 kilograms, 2 dots. 13 kilograms, 1 dot. 15 kilograms, 1 dot. 16 kilograms, 2 dots. 17 kilograms, 1 dot. 18 kilograms, 2 dots. 19 kilograms, 1 dot. 20 kilograms, 3 dots. 21 kilograms, 1 dot. 22 kilograms, 3 dots. 23 kilograms, 1 dot. 24 kilograms, 2 dots. 26 kilograms, 2 dots. 28 kilograms, 1 dot. 30 kilograms, 1 dot. 32 kilograms, 2 dots. 34 kilograms, 2 dots.
A histogram, the horizontal axis is labeled “dog weights in kilograms” and the numbers 10 through 35, in increments of 5, are indicated. On the vertical axis the numbers 0 through 10, in increments of 2, are indicated. The data represented by the bars are as follows: Weight from 10 up to 15, 5. Weight from 15 up to 20, 7. Weight from 20 up to 25, 10. Weight from 25 up to 30, 3. Weight from 30 up to 35, 5.
In a histogram, data values are placed in groups, or “bins,” of a certain size, and each group is represented with a bar. The height of the bar tells us the frequency for that group.
For example, the height of the tallest bar is 10, and the bar represents weights from 20 to less than 25 kilograms, so there are 10 dogs whose weights fall in that group. Similarly, there are 3 dogs that weigh anywhere from 25 to less than 30 kilograms.
Notice that the histogram and the dot plot have a similar shape. The dot plot has the advantage of showing all of the data values, but the histogram is easier to draw and to interpret when there are a lot of values or when the values are all different.
Here is a dot plot showing the weight distribution of 40 dogs. The weights were measured to the nearest 0.1 kilogram instead of the nearest kilogram.
A dot plot for “dog weights in kilograms”. The numbers 8 through 36, in increments of 2, are indicated. There is 1 dot on each of the following values: 10 kilograms,, 11 kilograms, 11.3 kilograms, 12 kilograms, 12.1 kilograms, 13 kilograms, 14.7 kilograms, 15 kilograms, 15.1 kilograms, 16 kilograms, 16.5 kilograms, 17 kilograms, 18 kilograms, 18.5 kilograms, 19 kilograms, 19.1 kilograms, 20 kilograms, 20.2 kilograms, 20.4 kilograms, 21 kilograms, 21.5 kilograms, 22.6 kilograms, 22.7 kilograms, 22.8 kilograms, 23.2 kilograms, 23.4 kilograms, 24 kilograms, 24.9 kilograms, 26 kilograms, 26.1 kilograms, 26.7 kilograms, 28 kilograms, 28.4 kilograms, 30 kilograms, 31.5 kilograms, 32 kilograms, 32.1 kilograms, 33.5 kilograms, 34 kilograms, 34.4 kilograms.
Here is a histogram showing the same distribution.
In this case, it is difficult to make sense of the distribution from the dot plot because the precision of the measurement means the dots are distinct and so close together. The histogram of the same data set does a much better job showing the distribution of weights by grouping similar values to show an overall trend, even though we can’t see the individual data values.
A histogram is a way to represent data on a number line with bars. Data values are grouped by ranges. The height of each bar shows how many data values are in that range. Each bar includes the left-end value but not the right-end value.
