Unit 4, Lesson 13

Measurement Error

Grade 7

13.1

Warm-up

Your teacher will give you two rulers and three line segments labeled A, B, and C.

Use the centimeter ruler to measure each line segment to the nearest centimeter. Record these lengths in the first column of the table.
Use the millimeter ruler to measure each line segment to the nearest tenth of a centimeter. Record these lengths in the second column of the table.

line segment	length (cm) as measured with the first ruler	length (cm) as measured with the second ruler
A
B
C

13.2

Activity

A soccer field is 120 yards long. Han uses a 30-foot-long tape measure to measure the length of the field and gets a measurement of 376 feet 6 inches.

What is the amount of the error?
Express the error as a percentage of the actual length of the field. Explain or show your reasoning.
What are some possible causes for this error?

13.3

Activity

Your teacher will tell you which three items to measure. Keep using the paper rulers from the earlier activity.

Between you and your partner, decide who will use which ruler.

Measure the three items assigned by your teacher, and record your measurements in the first column of the appropriate table.

Using the cm ruler:

item	measured length (cm)	actual length (cm)	difference	percentage

Using the mm ruler:

item	measured length (cm)	actual length (cm)	difference	percentage

After you finish measuring the items, share your data with your partner. Next, ask your teacher for the actual lengths.
Calculate the difference between your measurements and the actual lengths in both tables.
For each difference, what percentage of the actual length is this amount? Record your answers in the last column of the tables.
What do you notice about the percentages?

Student Lesson Summary

When we use a ruler or measuring tape to measure a length, we can get a measurement that is different from the actual length. This could be because we positioned the ruler incorrectly, or it could be because the ruler is not very precise. There is always at least a small difference between the actual length and a measured length, even if it is a microscopic difference!

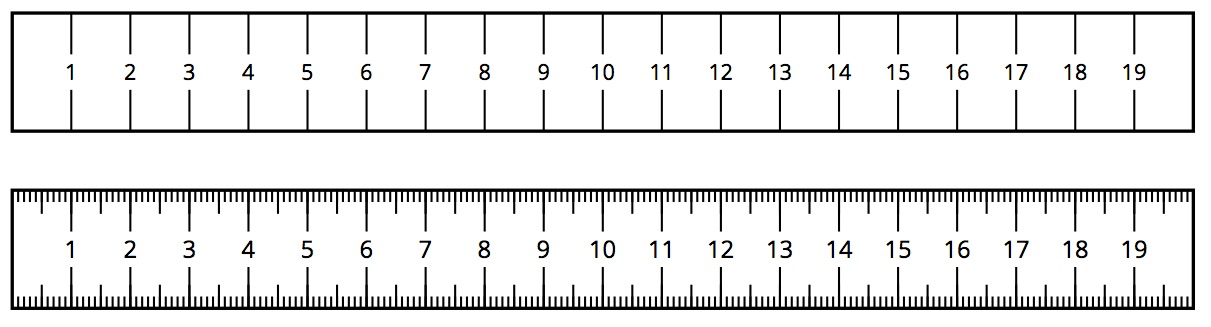

Here are two rulers with different markings.

<p>Two rulers, of equal length, each measuring 19 centimeters long.</p>

The second ruler is marked in millimeters, so it is easier to get a measurement to the nearest tenth of a centimeter with this ruler than with the first. For example, a line that is actually 6.2 cm long might be measured to be 6 cm long by the first ruler because we measure to the nearest centimeter.

The measurement error is the positive difference between the measurement and the actual value. Measurement error is often expressed as a percentage of the actual value. We always use a positive number to express measurement error and, when appropriate, use words to describe whether the measurement is greater than or less than the actual value.

For example, if we get 6 cm when we measure a line that is actually 6.2 cm long, then the measurement error is 0.2 cm, or about 3.2%, because .

Measurement error is the positive difference between a measured amount and the actual amount.

For example, Diego measures a line segment as 5.30 cm. The actual length is 5.32 cm. The measurement error is 0.02 cm, because .
